Export DHCP Statistics

There was a requirement from one of our client to get the below details from each of the DHCP server:

  1. Server Name
  2. Name
  3. Subnet
  4. Dns Server
  5. IP Range
  6. Total Ips
  7. Free Ips
  8. Lease Period

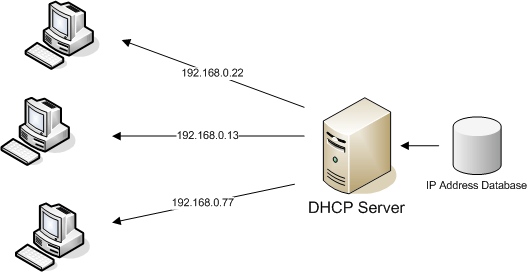

IntroDHCP1

Again, Thx to the creator of DHCP powershell module…

Download the script zip from below link, extract it

https://github.com/VikasSukhija/Downloads/blob/master/DHCP.zip

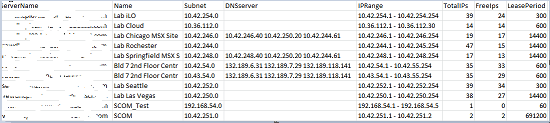

Run the batch file to get the below report:

Capture

Capture

##################################################################
#              Author: Vikas SUkhija (http://techwizard.cloud)
#              Description: Find DHCP SCope Options Values
#              for particular scope option
#              Date: 12/17/2014
#           Modified: 12/6/2015
#           Update: Included subnet.subnetname,primarydns,secondarydns,
#                   Total Ips, Free Ips, Leaseperiod
####################################################################
############Import Module & define variables##################

Import-module .\Microsoft.DHCP.PowerShell.Admin.psm1

$collection =@()
$idval = "6"  ### DNS Scope Option

$date = get-date -format d
$date = $date.ToString().Replace(“/”, “-”)
$time = get-date -format t

$time = $time.ToString().Replace(":""-")
               $time = $time.ToString().Replace(" """$output = ".\" + "DHCPScopeOptions_" + $date + "_" + $time + "_.csv"


##########################################
$srv = Show-DHCPServers
$servers$srv | select server
$servers | foreach{
$server = $_.server
Write-host "Processing Server...............$server" -foregroundcolor Green
$scope=Get-DHCPScope -server  $server
#$scope
$scp = $scope | where {$_.state -like "Active"| Select Name,Address,IPRanges,Lease
#$scp

    $scp | foreach{
    $addr = $_.Address
    $opt = Get-DHCPScope -server $server -scope $_.Address
    $sts = Get-DHCPStatistics -Server $server | Select -expandproperty ScopeStatistics | where{$_.scope -like $addr| select TotalAddresses,Usedaddresses
        $optscope = $opt | Select -expandproperty options | where{$_.optionId -like $idval| select Values

$coll = “” | select ServerName,Name,Subnet,DNSserver,IPRange,TotalIPs,FreeIps,LeasePeriod

$Tot = $sts.TotalAddresses
$used = $sts.UsedAddresses
$free = [int]$Tot -[int]$used
$coll.ServerName = $server
$coll.Name = $_.Name
$coll.Subnet = $_.Address
$coll.DNSserver = $optscope.values
$coll.IPrange = $_.IPRanges
$coll.TotalIPs = $sts.TotalAddresses
$coll.FreeIps = $free
$coll.LeasePeriod = $_.Lease

$collection +$coll


        }

}

$collection | select ServerName,Name,Subnet,@{Name=”DNSserver”;Expression={$_.DNSserver}},@{Name=”IPRange”;Expression={$_.IPRange}},TotalIPs,FreeIps,Leaseperiod |

export-csv $output -notypeinfo

#######################################################################
