SharePoint 2013 Installation IIS Configuration Error

Hi Readers,

I got time to study SharePoint 2013 & first problem I encountered was IIS configuration error while running prerequisites.

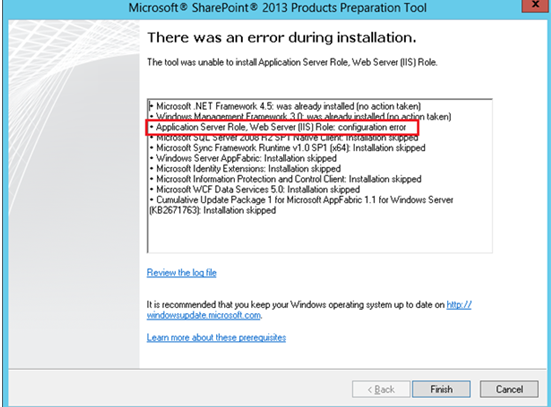

When I launched SharePoint 2013 Installation Prerequisites wizard, below error was received:

Capture

On researching found below article & resolution:

http://blogs.msdn.com/b/fabdulwahab/archive/2013/08/29/sharepoint-2013-installation-and-configuration-issues.aspx

  1. Insert the Windows Server 2012 installation image or DVD
  2. Open a command prompt window (run as Administrator) and run the following:
  3. Dism /online /enable-feature /featurename:NetFX3 /All /Source:D:\sources\SxS /LimitAccess

Note: D:\ is a Label for CD Drive in my case where Windows Server 2012 ISO image.

Although, I haven’t faced the Second issue that was mentioned in the article, as parallelism is configured correctly(set to 1) on the SQL server.

Capture1

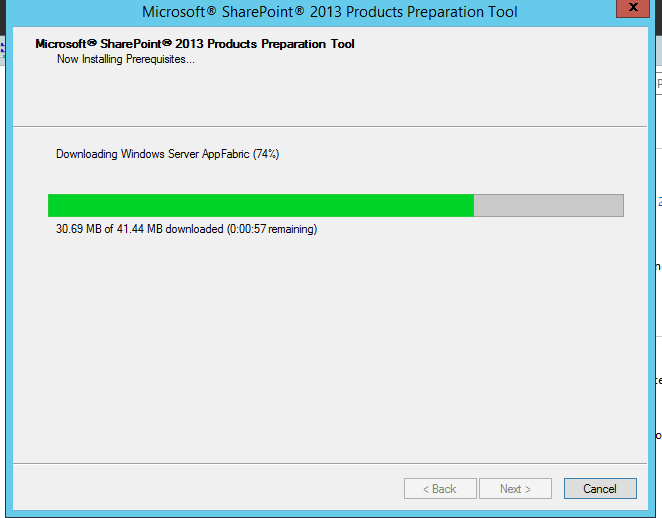

After installing this fix all went well & wizard started moving 🙂

sp1
